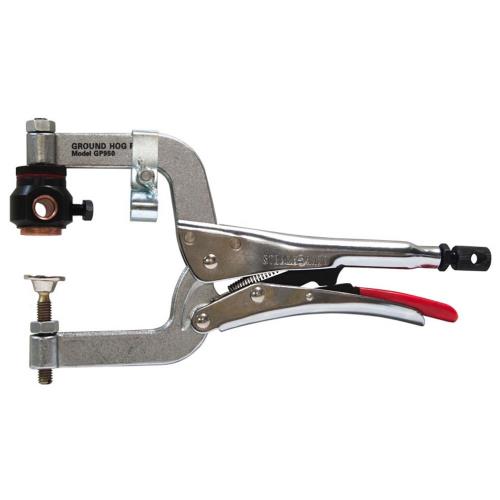

Stronghand Ground Hog Clamp - 450A

SHGP950 | Stronghand Ground Hog Clamp - 450A Grounding Clamps High clamping pressure improves arc stability and reduces power consumption. The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning. • Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable) • Prevents current restriction and allows complete current transfer. • Controls the electrical current by isolating the contact surface and the cable connection. • Improve arc stability and cable life, and reduce power consumption. Specifications: • Amperage / Cable Size: 450A / 2/0 – 0.427? • Throat Depth: 89 mm • Max. Capacity: 64 mm • Tapped Hole: M10 • Clamping Pressure: 180 kg • OAL: 280 mm • Weight: 1.1 kg
