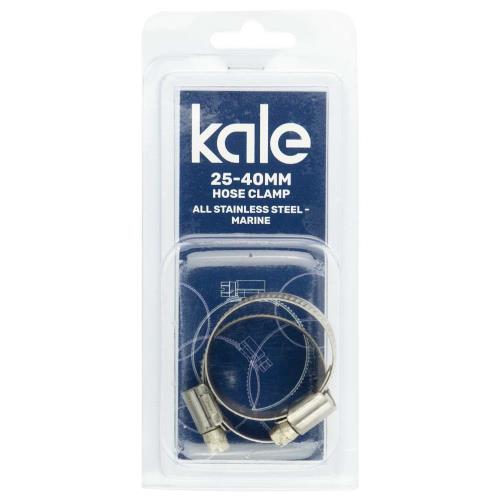

WD - Worm Drive Clamp Blister Pack
WD122540W4R | Kale WD12 25-40mm W4-R (2pk)
WD12 | 25-40mm Capacity | W4
Features:
• Light product, easy assembly and space saving with compact housing and screw design.
• Stronger and durable with the mechanically locked single piece design of housing.
• Burr-free and convex band edges.
• 100% traceability on the product.
• High clamping force with low tightening torque.
• Higher tightening torque and clamping force with 12mm band width.
Technical Spec:
• Band Width - 12mm
• Capacity (min - max) - Ø 25-40mm
• Tightening Torque (max) - 5.0Nm (1)
• Screw Housing Length - 24mm
• Grade W4 - Stainless Screw, Band & Housing (2)
• Corrosion Resistance (min.Hour) IS0 9227 - 72
• Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4301 Stainless DIN EN-10088-2 or equivalent
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
